Chi tiết sản phẩm

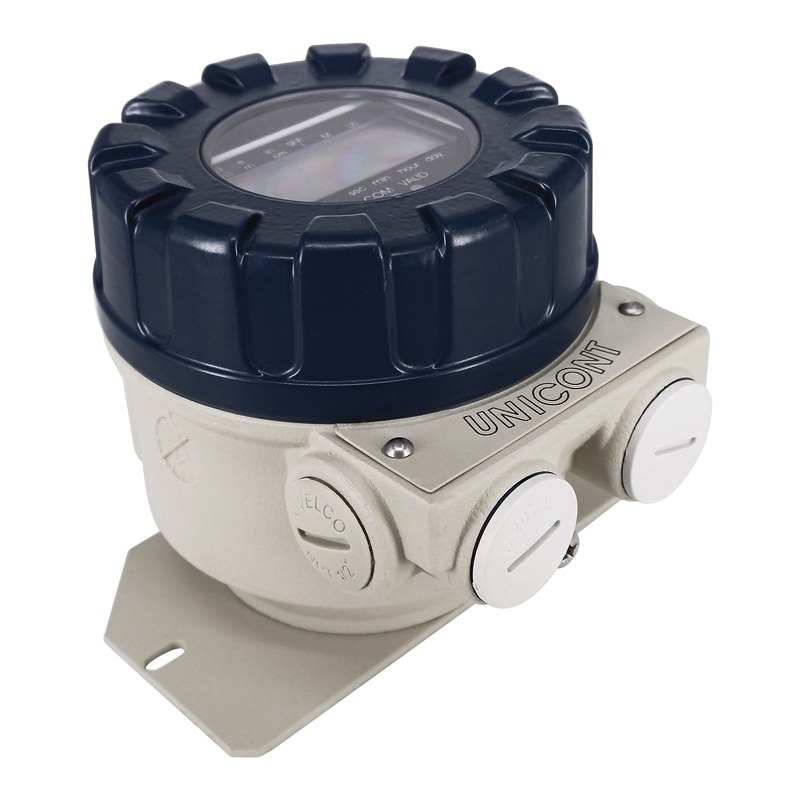

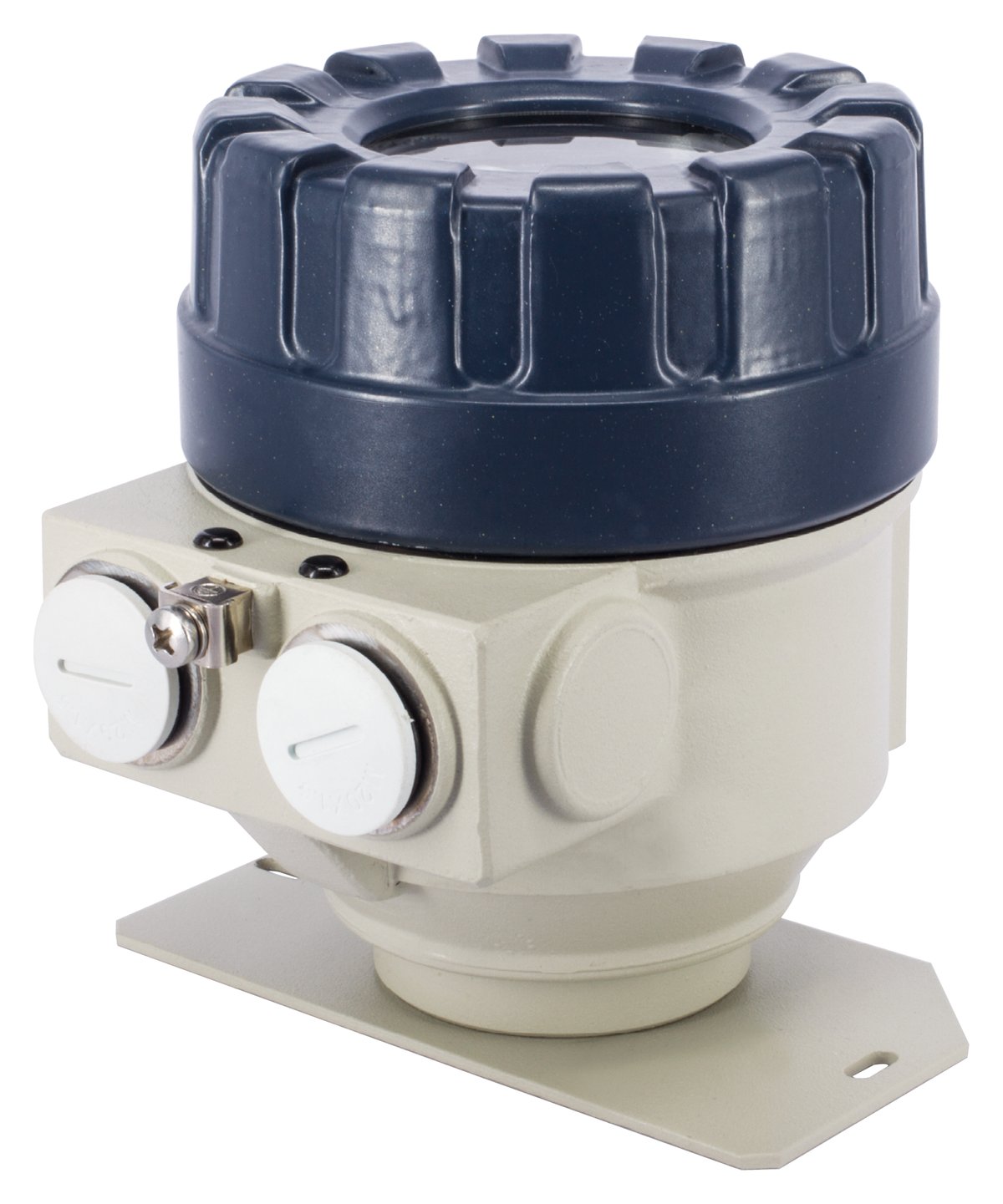

Mô tả sản phẩmUNICONT ------- Manufacturer: NIVELCO(HUNGARY) Model: PD Series UNICONT series is the universally scalable process value indicator of NIVELCO for current loops, most of them without the need for power supply. UNICONT PLK-501plug in display can be connected to the 2-wire transmitters with its DIN 43650 socket, such as NIPRESS pressure gauge / transmitter and AnaCONT LCK conductivity transmitters. The UNICONT PLK-501 has clearly visible 4 digit LED display. UNICONT PDFdevices are digital, field process 2-wire indicators suitable for indication of temperature, pressure, level, etc. values with 6 digit SAP-200 LCD display. The information is carried by the loop current without the need for additional power supply. Robust enclosure makes applications under harsh conditions also possible. Explosion proof versions are available for hazardous environments. The HART capable UNICONT PDF3-wire process indicators require additional power supply. Besides displaying the loop current or the process values, these units convert input current to HART signals and so enable devices that have analogue outputs only to be integrated into HART multidrop systems. Process indicators find their use where process value has no control function, such as switching ON/OFF pressure control, etc. is needed.
Main Features:
Technical Data:
Order:
Catalog
Hướng dẫn lắp đặt tiếng anhMultichannel Process Controller: USER RS485 manual
Universal Controller / Indicator - PROGRAMMING GUIDE: UNICONT PMG-500
Đại lý chính thức tại Việt Nam
CertificatesChứng chỉ tùy chọn: ■ ATEX (Ex ia G) ■ ATEX (Ex d [ia] G) ■ IEC Ex (Ex ia G) ■ IEC Ex (Ex d [ia] G) ■ INMETRO (Ex ia G) -Test repỏt-C/O Nhà máy-C/Q Nhà máy-C/O phòng thương mại Sản phẩm khác
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||
