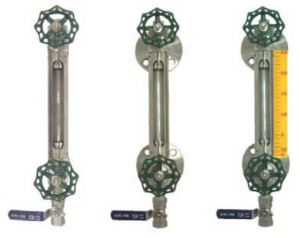

Tubular Type Level Gauge - SL Series with Protection Support Pipe

----------------------------

Manufacturer: NEW-FLOW(Taiwan)

Model: SL Series

Technical Data:

Suitable Fluid: Water, Oil, other chemical liquid
Gauge Valve Material: SS304,SS316, others available
Gauge Tube Material: Glass, P.V.C
Seal Material: Viton, Teflon available
Gauge Valve Function: With or Without ball check
Max. Working Temperature: 100⁰C
Max. Working Pressure: 4~7 kg/cm3
Process Connection: 1/2" ~ 1 1/2" Thread and Flange on request
Flange Rating: JIS, ANSI, DIN available
Drain Valve Connection: standard 1/2"NPT(F); Option availble

------------------------------------------------------------------------------------------------------------------------------------
