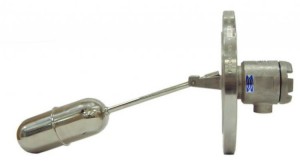

Thiết Bị Đo Mức, Báo Mức LT204 FLANGE TYPE



Model	:	LT204 FLANGE TYPE
Manufacturer	:	NEW - FLOW
Enclosure housing	:	Weather proof IP65
Process connection size	:	1½" ~ 4" Flange type
Flange rating	:	JIS, ANSI, DIN available
Material	:	Wetted parts 316 stainless steel
Temperature limits	:	-30°C to 150°C
Pressure limits	:	3.0 MPa (30 kg/cm²), option: up to 4.5 MPa
Switch function	:	SPDT Micro switch
Switch rating	:	3A/250VAC, 3A/30VDC, 0.4A/125VDC
Conduit connection	:	1/2"NPT female, option
Float working specific gravity	:	>=0.7 (option: less than 0.7 available on request)























Dimensions





	A	B	C	D	E
mm	150	92	102 Approx.	64	40





*Special dimensions on request.



Ordering Information



Code	Process Connection Size
(1)	1½"
(2)	2"
(3)	3"
(4)	4"













Code	Process Connection Rating
(A)	JIS10K
(B)	JIS20K
(C)	ANSI 150
(D)	ANSI 300
(E)	PN10
(F)	PN25
(G)	option

















Code	Flange Material
(1)	SS316
(2)	SS304
(3)	Option









------------------------------------------------------------------------------------------------------------------------------------
