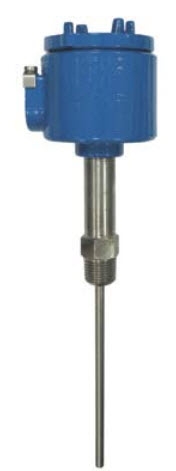

Sheath Type Resistance Sensor

----------------------------

Manufacturer: NEW-FLOW(Taiwan)

Model: RTD(Explosion Proof) Series

Technical Data:
Head housing: General, IP65, Explosion proof available
Sheath material: SS316
Working temperature limited: -200~650⁰C
according to applicable standards table
Measuring wiring method: 2 wire, 3 wire, 4 wire, available
Drilled bar stock type: BSF, BLF, BTF, BTLF, BPSF, BPLF
Material: SS304, SS316, SS316L, Monel, Hastelloy C 276, Brass, Carbon Steel, Titanium(special material available upon request)
Process connection: 1/2" ~ 4" flange available, flange rating - ANSI, DIN, JIS available(special flange upon request)
Instrument connection: 1/2" NPT, 3/4" NPT Female available(special thread upon request)

------------------------------------------------------------------------------------------------------------------------------------
