Continuous measurement of acidity (pH<7) and of basicity (pH>7) in liquids can be performed by the help of AnaCONT transmitters. The necessary feeding of chemicals and other technological functions can be controlled by the processed measured values. The potential difference between the submerged measuring and reference probe generates a voltage proportional to the concentration of the hydrogen ion in the measured fluid. This voltage is evaluated by the signal processing electronic module of the instrument. Based on the signals of the submerged probe and the temperature sensor the smart signal processing electronic module calculates a pH value normalized to 25°C and generates a proportional output signal. The long term stability and accuracy of the measurement requires a periodic calibration of the sensors using the standard buffer solutions.

Applications:

- Checking of water quality

- Water production, wastewater treatment

- Pharmaceutical industry

- Food and beverage industry

Certificates

 ATEX Certificate, Region: EU, Ex marking: IIB

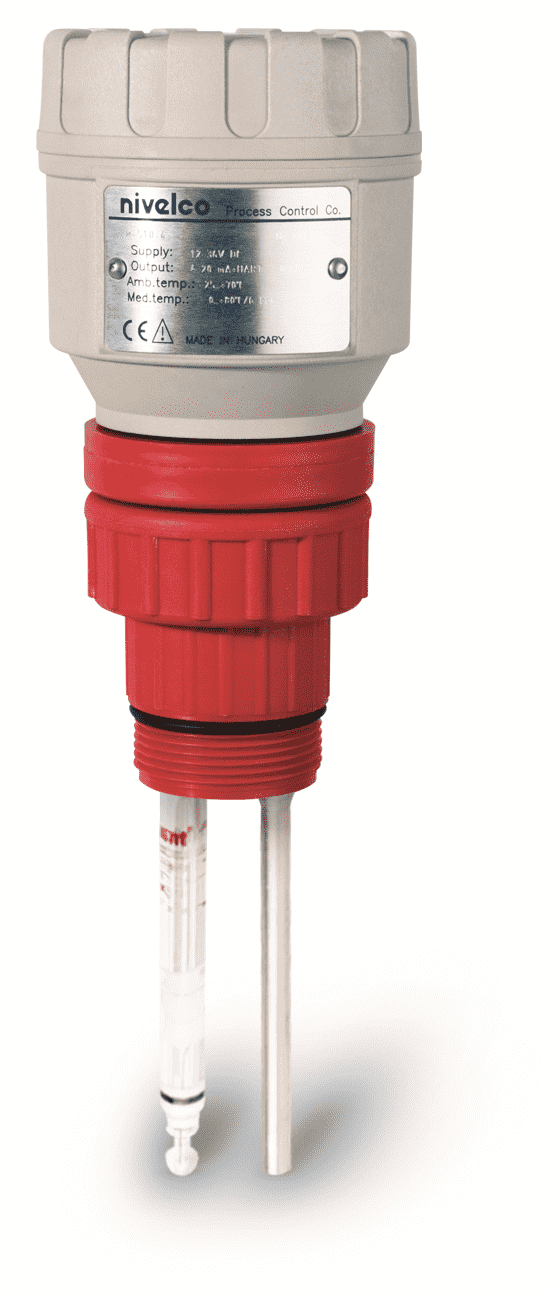

pH transmitters LEP-200

Model: LEP-214-4

Brand: Nivelco

- Power supply: 12 – 36 V DC

- Compact pH transmitters

- Not included programmer and local indicator

- Ambient temperature: -30 °C...+70 °C

- Medium temperature: -10 °C...+90 °C

- Resolution: 0.01pH (internal resolution 0.004 pH)- Range: 1-12pH

- Linearity: ±0.004 pH

-Accuracy: 0.1% of the measured value ±1 digit ±0.01% / °C

- Reserve: ±2pH

- Housing: Aluminium (paint coated)

- Range: 1-12

- Max pressure: 6 bar

- Max temperature: 80 °C

- Medium: with solid particles

- Connection: 1 1/2" NPT

- Material: PP

- Output: 4-20mA+ HART

- Probe housing: IP 68, Electronic housing: IP 67; Integrated type: IP 68

CATALOGUE TIẾNG VIỆT

CATALOGUE TIẾNG ANH

Conductivity Transmitter: AnaCONT LCK
