Mô tả sản phẩm

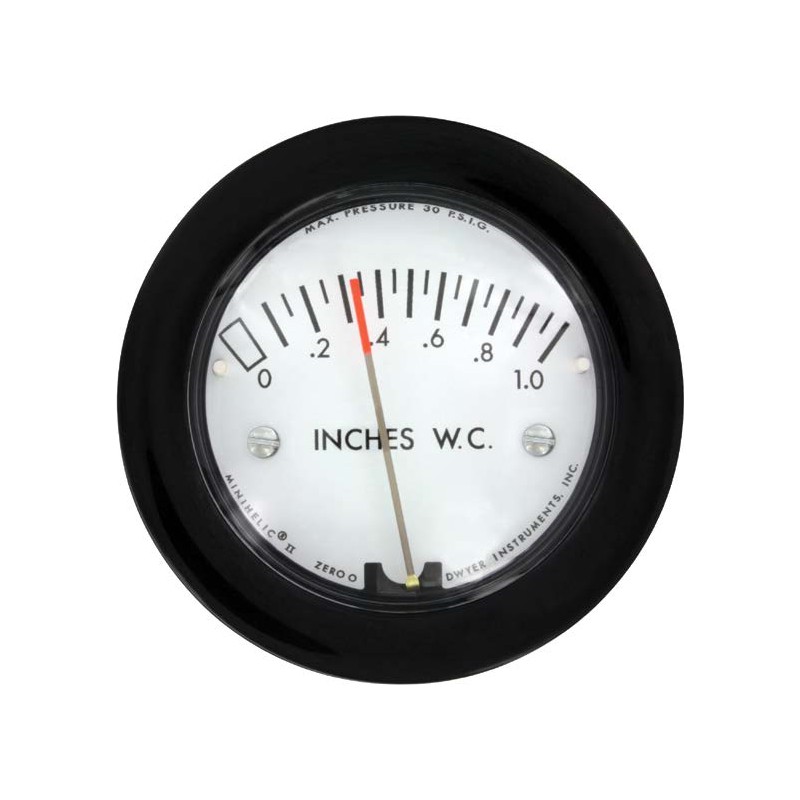

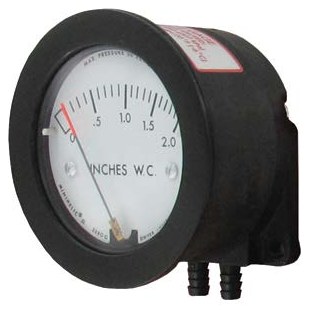

Đồng Hồ Đo Chênh Áp Series 2-5000
| Model |
: |
SERIES 2-5000 |
| Manufacturer |
: |
DWYERS |
| Service |
: |
Air and compatible gases. |
| Wetted Materials |
: |
Consult factory. |
| Housing |
: |
Glass filled nylon; acrylic lens. |
| Accuracy |
: |
±5% of full scale at 70°F (21.1°C) |
| Pressure Limits |
: |
30 psig (2.067 bar) continuous to either pressure connection. |
| Temperature Limits |
: |
20 to 120°F (-6.67 to 48.9°C). |
| Size |
: |
2-1/16" (52.39 mm) diameter dial face. |
| Mounting Orientation |
: |
Diaphragm in vertical position. Consult factory for other position orientations. |
| Process Connections |
: |

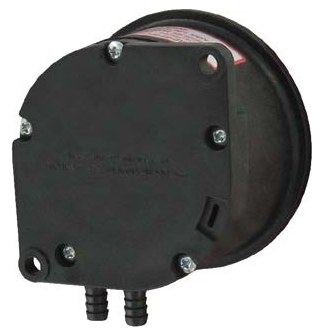

Barbed, for 3/16" I.D. tubing (standard); 1/8" male NPT (optional). |
| Weight |
: |
6 oz (170.1g). |
| Agency Approvals |
: |
RoHS. |
CAUTION: For use only with air or compatible gases.
| Model |
Range, Inches of Water |
Model |
Range, PSI |
Model |
Range, MM of Water |
2-5000-0
2-5001
2-5002
2-5003
2-5005
2-5010
2-5020
2-5040
2-5060
2-5100 |
0-0.5
0-1.0
0-2.0
0-3.0
0-5.0
0-10
0-20
0-40
0-60
0-100 |
2-5205
2-5210
2-5215 |
0-5
0-10
0-15 |
2-5000-25MM
2-5000-50MM
2-5000-100MM |
0-25
0-50
0-100 |
| Model |
Range, Pascals |
2-5000-125PA
2-5000-250PA
2-5000-500PA |
0-125
0-250
0-500 |
| Model |
Range, kPa |
2-5000-1KPA
2-5000-3KPA |
0-1
0-3 |
|
ACCESSORIES
A-434, Portable Kit

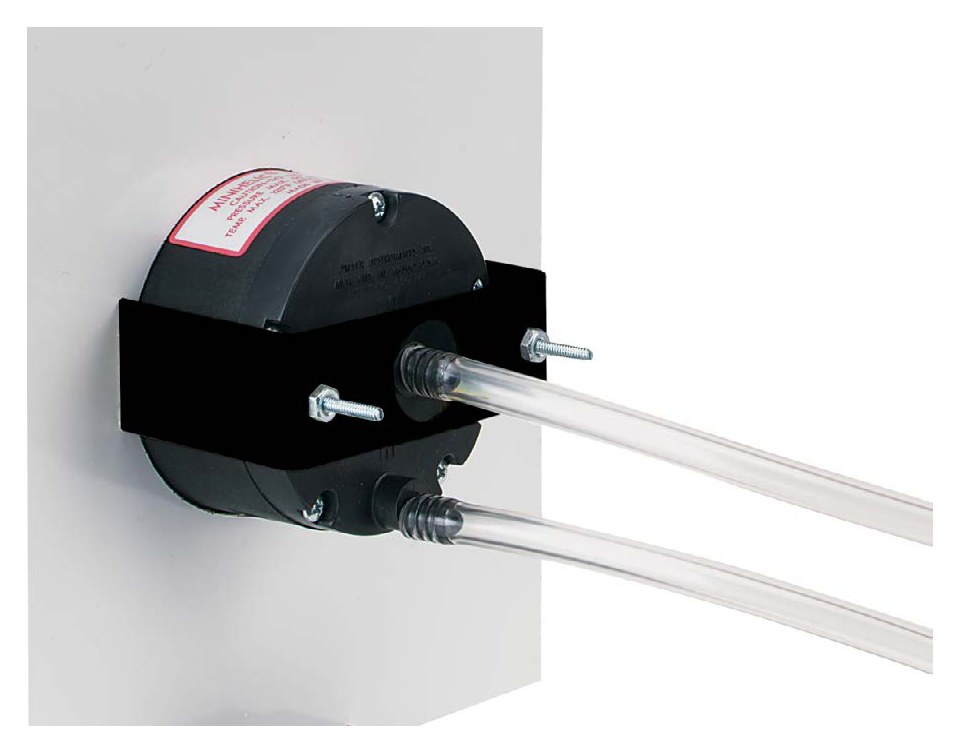

A-497, Surface Mtg. Brkt
A-609, Air Filter Kit
|
For optional 1/8" male NPT connections, add suffix - NPT to model numbers listed above.
Example: 2-5001-NPT
------------------------------------------------------------------------------------------------------------------------------------
