Cảm Biến Nhiệt Độ THERMOCOUPLE AND RTD

Model                                                : THERMOCOUPLE AND RTD

Manufacture                                     : NEW - FLOW

Head Type Technical Data

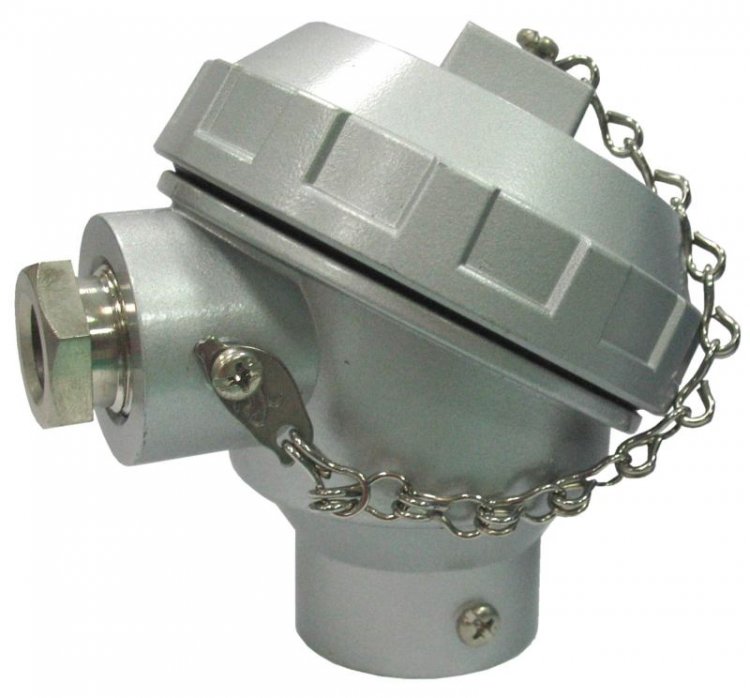

HN Type

Protection                                         : IP67

Material                                             : Aluminum Alloy

Weight                                               : 264g

Protection tube connection           : ½", ¾" (PF, NPT, BSP), M20X1.5

Extension wire connection            : ½", ¾" (PF, NPT, BSP), M20X1.5

Other specifications are available on request.



HP Type

Protection                                        : IP65

Material                                            : Polypropylene

Weight                                              : 112g

Protection tube connection          : ½"NPT, ½"BSP

Extension wire connection           : ¾"NPT, M20x1.5

Other specifications are available on request.



HD Type

Protection                                      : IP67

Material                                          : Aluminum Alloy

Weight                                            : 158g

Protection tube connection        : ½"PF, ½" BSP

Extension wire connection         : M22X1.5, PG16

Other specifications are available on request.



HI Type

Protection                                     : IP67

Material                                         : Cast Iron

Weight                                           : 1600g

Protection tube connection       : ½", ¾" (PF, NPT, BSP), M20X1.5

Extension wire connection        : ½", ¾" (PF, NPT, BSP), M20X1.5

Other specifications are available on request.



HB Type

Protection                                    : IP65

Material                                        : Bakelite

Weight                                          : 156g

Protection tube connection      : ½" PF

Extension wire connection       : ½" PF

Other specifications are available on request.



KS Type

Protection:

FM/CSA Approvals	Class I, DIV I Groups B, C and D Class II, DIV I Groups E, F and G
CENELEC Approvals	Eexd IIC ATEX II 2G









Material                                        : 316SS

Weight                                          : 900g

Other specifications are available on request.



S1 & S2 Type

Protection                                    : Explosion proof. EExdIICT6 IP65

Material                                        : Aluminum Alloy



Type	Dimensions unit:mm											Terminal Block (on request)	Weight Gr.
	ØA	ØB	ØC	E	F	G	H	I	ØL	M	N
S1	½"	70	31	79	9	72	85	20	55	52	13	4x4 mm²	350
S2	¾"	90	38	100	10	78	92	24	76	69	14	4x4 mm²	510













Terminal Type



N-2P-A     N-3P-A     N-3P-A(Y)     N-4P-A     N-6P-A

Terminal blocks for connection heads. Material: Ceramic Al2O3 92% Terminal block weight: 2P-A(72g). 3P-A(78g). 3P-A(Y)(72g).4P-A(84g).6P-A(94g)

N-2P-B     N-3P-B     N-3P-B(Y)     N-4P-B     N-6P-B

Terminal blocks for connection heads. Material: Bakelite Terminal block weight: 2P-B(56g). 3P-B(68g). 3P-B(Y)(44g). 4P-B(84g). 6P-B(66g)

M-2P-C     M-3P-C     M-4P-C     M-6P-C

Terminal blocks for connection heads. Material: Ceramic Terminal block weight: 2P-C(34g). 3P-C(38g). 4P-C(42g). 6P-C(54g)

D-2P-A     D-3P-A     D-4P-A     D-6P-A

Terminal blocks for connection heads. Material: Ceramic Al2O3 92% Terminal block weight: 2P-A(66g). 3P-A(72g). 4P-A(78g). 6P-A(88g)

D-2P-B     D-3P-B     D-4P-B     D-6P-B

Terminal blocks for connection heads. Material: Bakelite Terminal block weight: 2P-B(48g). 3P-B(54g). 4P-B(60g). 6P-B(72g)

DS-2P-C     DS-3P-C     DS-4P-C     DS-6P-C

Terminal blocks for connection heads. Material: Ceramic Terminal block weight: 2P-C(64g). 3P-C(70g). 4P-C(74g). 6P-C(84g)



































------------------------------------------------------------------------------------------------------------------------------------
