Batch Controllers

------------------

Manufacturer: Flomec(Australia)

Model:  EB Series

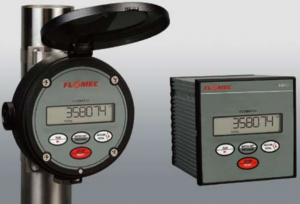

           The EB Ecobatch is a fully programmable high speed batch controller specifically designed to operate with common pulse producing flowmeters such as positive displacement, turbine, mass, vortex or magnetic style.The instrument displays batch value, batch progress & cumulative total in engineering units as programmed by the user, it also logs the total number of batches performed and total volume dispensed. Ecobatch scrolls messages to prompt the user at each stage of operation. Batch limiting and no-flow detection are “safeguards” against erroneously high batch entries, loss of the flow input signal or control valve or pump failure.

Main Feature

• Large 8 digit batch & cumulative total LCD
• Robust IP66/67 universal mount or DIN panel mount version
• Simple programming
• PIN protected programming
• Scaleable flow inputs
• Two stage control
• Automatic overrun compensation
• Missing pulse (no flow)alarm
• Maximum batch size limiting
• Non volatile memory
• Multiple batcher interlock function
• Remote Run, Stop, batch set, etc

Technical Data:

Order:

•

• ĐẠI LÝ PHÂN PHỐI TẠI VIỆT NAM :



  CÔNG TY TNHH TM-DV-KT CAO VIỆT CƯỜNG
  83/29 Vườn Lài, Phường Phú Thọ Hòa, Quận Tân Phú, TP. HCM
  Tel: 08-3813 4681/Fax: 08-3813 4680
  Website: www.caovietcuong.com | Email: sales@caovietcuong.com



Chứng chỉ tùy chọn:

■ ATEX (Ex ia G) ■ ATEX (Ex d [ia] G) ■ IEC Ex (Ex ia G) ■ IEC Ex (Ex d [ia] G) ■ INMETRO (Ex ia G)

-Test repỏt-C/O Nhà máy-C/Q Nhà máy-C/O phòng thương mại
