NIVOMAG

-------

Manufacturer: NIVELCO(HUNGARY)

Model:  MK-200 Series

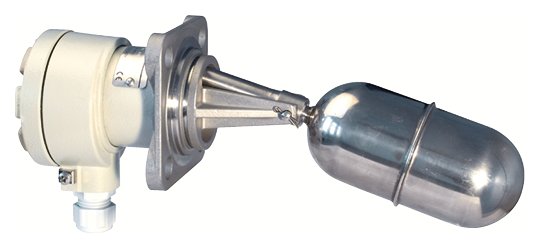

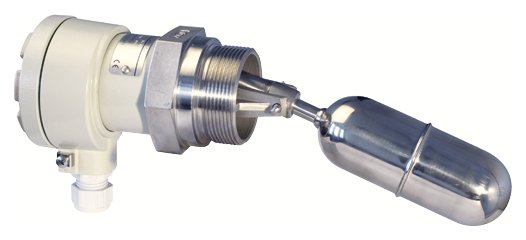

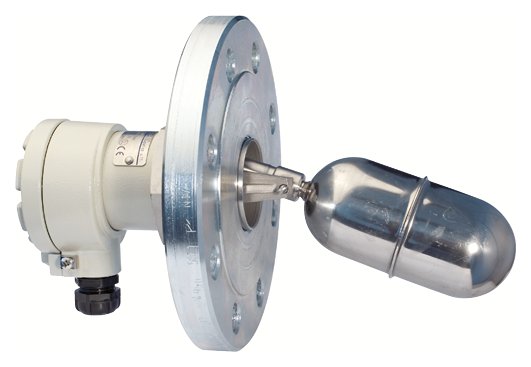

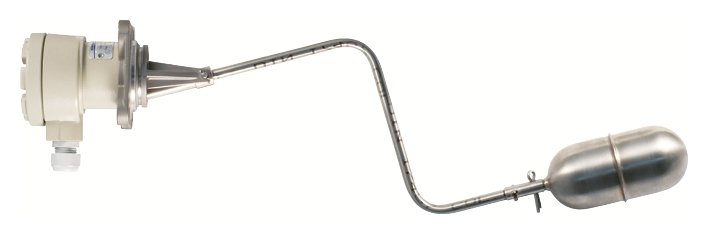

              NIVOMAG MK-200series magnetic float level switches are used for point level detection and level control of liquids in all types of vessels. Operation principle: the permanent magnet of the float activates the output microswitch by a non-contact coupling system.

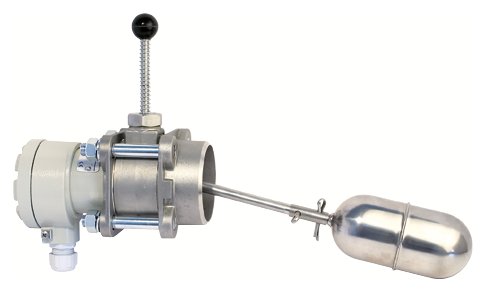

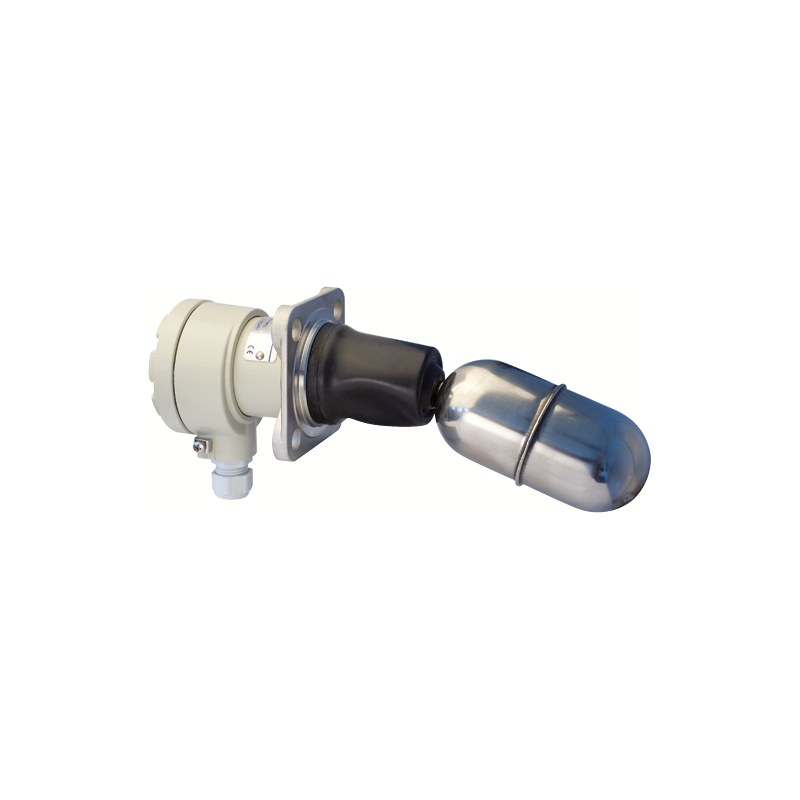

         The great variety of both the top and side mounted versions makes it easy to install the switch in any tank at any location. For the simplest level switching you can select models with fixed hysteresis, while for level control application we offer NIVOMAG switches with adjustable hysteresis. Models with rubber or silicon sleeves can be applied for contaminated liquids. You can fit the NIVOMAG switch with an MMKtype tester, to check the switching function even when the liquid levels aren’t changing.

Main Features:

• Magnetic coupling between
• the switch and the float
• Operation w/o external power supply
• Side or top mounted versions
• Underwater version
• Fixed or variable hysteresis
• Max. 250°C medium temperature
• Explosion proof version
• IP 65/68 protection

 Technical Data:

Order:

---------------------------------------------------
