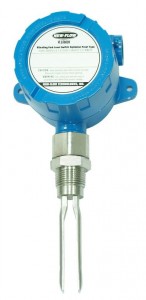

Thiết Bị Đo Mức, Báo Mức VLS5000



Model	:	VLS5000
Manufacturer	:	NEW - FLOW
Wetted part material	:	316 stainless steel
Tread connection	:	1" NPT, 1" BSP
Flange connection	:	from 1" to 3", JIS, ANSI, DIN, and Clamp available
Detection length	:	minimum 130 mm maximum 400 mm
Working temperature	:	-30°C ~+80°C
Working pressure	:	maximum 100 kg/cm², up to 400 kg/cm² on request
Liquid viscosity	:	0.2~ 10000 mpas
Liquid density	:	0.6 g/cm³ ~ 2.5 g/cm³
Housing	:	IP65
Explosion Proof	:	Class I, Groups A, B, C, D; Class II, Groups E, F, G; NEMA4X
Power Supply	:	110VAC, 220VAC, 24VDC
Contact Form	:	SPDT
Contact Rating	:	20A/125VAC, 12A/250VAC



























Ordering Information



Code	Process Connection
(1)	Thread type
(2)	Flange type
(3)	Clamp type
(4)	Coupling type













Code	Connection Size
(A)	1"
(B)	1½"
(C)	2"
(D)	3"













Code	Connection Rating
	Thread: (1) NPT  (2) BSP Flange: (3) JIS10K   (4) JIS20K    (5) ANSI 150#   (6) ANSI 300#   (7) PN10   (8) PN16   (9) PN25   (0) Option: fill in the requested rating_____













Code	Electronic Connection
(E)	3/4"NPT Female, Standard
(F)	1/2"NPT Female









Code	Insertion Length
S	Standard
L	Fill in the requested length   ie: L=300mm











Code	Power Supply
(A)	110VAC
(B)	220VAC
(C)	24VDC









------------------------------------------------------------------------------------------------------------------------------------
