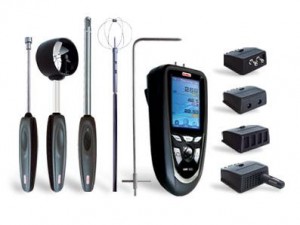

Micromanometer-Pressure/air velocity-Model AMI 300
Multi-parameters portable device : Pressure, air velocity, airflow, hygrometry, temperature, air quality, tachometry.
Memory : up to 12 000 measurement points
Dataloger software for data recording and processing (option).
Supplied with calibration certificate and alu transport case.
Anemometer
- Ø 70 mm vane : 0,3 to 35 m/s
- Ø 100 mm vane : 0,25 to 35 m/s
- Ø 14 mm vane : 0,8 to 25 m/s
- Hotwire : 0,15 to 30 m/s
Thermometer
- Pt100 : -50 to 250°C
- Thermocouple K: -200 to +1300°c
- Thermocuple J : -100 to +750°C
- Thermocouple T : -200 to +400°C
Manometer
- 0 to ±500 Pa
- 0 à to ±2500 Pa
- 0 to ±10000 Pa
- 0 to ±500 mBar
- 0 to ±2000 mBar
- Pitot tube : 2 to 100 m/s
Hygrometer
Air Quality (CO/CO2)
Tachymeter
- 60 to 60 000 tr/min (optic)
- 30 to 20 000 tr/min (contact)
Probes
Humidity probe
Smart Plus
Temperature probe
Smart Plus
Tachometry probe
Smart Plus
Multifunction probe
Smart Plus
CO (CO2) / Temperature / Humidity probe
Smart Plus
Pressure
Measurement module
Temperature
Measurement module
Climatic conditions
Measurement module
Current / voltage
Measurement module
KIMO offers a wide range of high-quality and accurate Pitot tubes, as per the AFNOR NFX 10-112 norm.
Accuracy : More than 1 %, for a ± 10 ° alignment to the fluid flow.
Pitot tubes Type L
Pitot tube with ellipsoidal head. An intake for total pressure and 6 holes for static pressure. Body made of stainless steel.
Pitot tubes Type L with TCK
Pitot tube with ellipsoidal head. An intake for total pressure and 6 holes for static pressure. Sheated thermocouple K probe integrated, with connection cable length 1,5 m. Body made of stainless steel.
DEBIMO
Airflow measuring blades
Applications : air supply systems in laboratories, air conditioning systems, air flow test rigs, fume extraction and exhaust systems, vacuum cleaning systems.
KIMO DEBIMO flow measuring blades are a simple and cost effective method of providing permanent air flow measurement in rectangular or circular ducts. When used with a KIMO differential pressure device (pressure, transmitter, electronic micromanometer, liquid column manometer, differential pressure switch, ...).
- DEBIMO air flow measuring blades ensure accurate indication, control or recording of air flow velocity and volume.
- Permit velocity measurements from 3 to 100 m/s (9 Pa to 10000 Pa).
- Airfoil section limiting differential heads (<3%) and turbulences.
- Distribution of the measurement apertures on the airfoil permitting the medium air flow control (average of the differential pressures).
Accessories
Tubes
Clear and silicone tube
Clear tube Ø 5 x 8
For permanent installation (m/l or 25m).
Silicone tube Ø 4 x 7
Black or white, for test instruments (m/l or 25 m).
Black ball
Developed and manufactured by KIMO, the Black Ball Thermometer is for measuring radiant temperature.
Based on the black body principle, it consists of one sphere, which is equipped with a liquid expansion thermometer, Pt 100 or thermocouple temperature probe.
It’s an accurate, reliable and user-friendly instrument.
Telescopic extension
Telescopic bent extension to 90°.
Length 1 m, compatible with all measurement probes.
Airflow cone for vane 100 mmm
For vane anemometer
CE 300
Protective housing
Hoods
Software
Data Logger-10 software
Portable software
Datalogger-10 operating system for portable instruments. Wire (LPCF) or wireless (LPCR) interface.
------------------------------------------------------------------------------------------------------------------------------------
