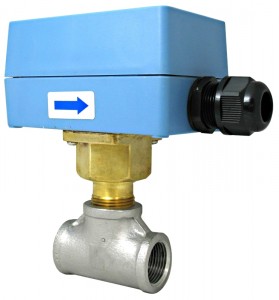

Công Tắc Lưu Lượng FS40R

0
Hãng sản xuất : NEW-FLOW
Warranty : Đài loan
Mode : FS40R
Code : GE1-01589
Price : Call
Category : New-flow paddle flow switches (liquid)
Size :
Range :
Views : 4425
Date update : 20/11/2011
Quantity :


Mô tả sản phẩm

Công Tắc Lưu Lượng FS40R

Model                                              : FS40R

Manufacture                                   : NEW - FLOW

Protection class                             : IP65

Process Connection                     : 1/2", 3/4" Female (Tee), NPT and PT available

Material                                           : Housing: Plastic (Other wetted part: brass or stainless steel)

Application                                      : Liquid

Installation                                      : Easily mounted directly on pice line

Microswitch                                    : SPDT, 15A 125, 250V 480 VAC, 1/2A 125 VDC, 1/4A 250 VDC

Conduit Connection                      : PG11, other thread available with adaptor

Temperature Limit                         : -30 ~+ 120°C

Pressure Limit                                : 20kg/cm² — stainless steel; 10 kg/cm² — brass



Flow Rate Table (For Acuate & Deactuate)

Flow Rates Required to Actuate, Deactuate
Litter per Hour (L/H) Water at 25°C
Pipe
Size
Actuate (on) Deactuate (OFF)
FS - 40RB FS - 40RS FS - 40RB FS - 40RS
1/2" 590 - 600 610 - 630 370 - 390 390 - 410
3/4" 760 - 780 790 - 810 465 - 480 490 - 520

















Material List



Item   FS-40RB FS-40RS
1 Housing plastic plastic
2 Switch mechanism Microswitch unit Microswitch unit
3 Connection brass SS316
4 Bellows brass SS316
5 Paddle guide brass SS316
6 Paddle SS301 SS301
7 Conduit plastic plastic

















Ordering information



Code Connection Material
B Brass
S SS316









Code Process Connection
1 1/2" NPT female
2 1/2" PT female
3 3/4" NPT female
4 3/4" PT female
0 option













------------------------------------------------------------------------------------------------------------------------------------
