Thiết Bị Đo Mức Dạng Từ, New-Flow, Series M, 400mm, 1/2" ANSI 150#RF, dùng cho nước, dầu, hơi, hóa chất, phụ gia

0
Brand : New-Flow
Origin : Taiwan
Model : M-A-5-B-2-C-0-0-2-B-0-(Sp.Gr.____)-400mmL-N (Wetted Part : SS316)
Mã số : GV1-03465
Đơn giá : 17,000,000 VNĐ
Danh mục : Giải Pháp Đo Mức Level Gauge
Size : 1/2" ANSI 150#RF
Range : 400mm
Lượt xem : 4045
Cập nhật : 09/08/2013
Số lượng :


Mô tả sản phẩm

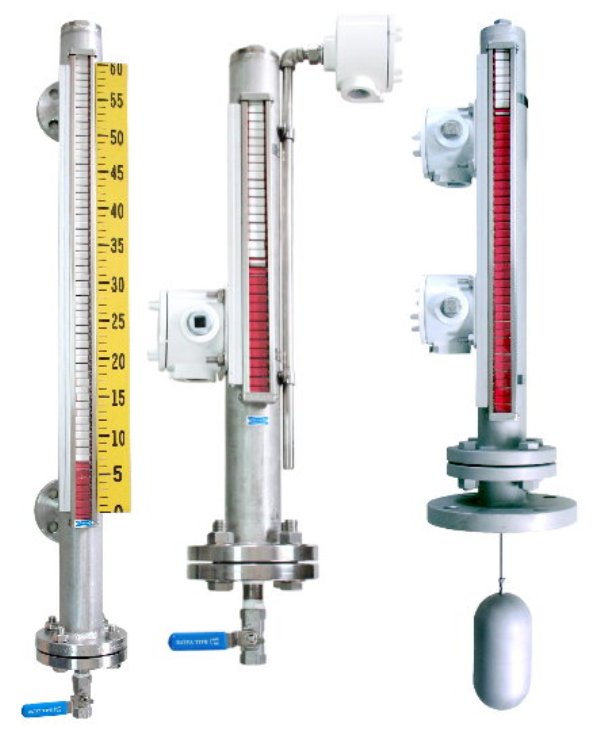

Magnetic Level Gauge

----------------------------

Manufacturer: NEW-FLOW(Taiwan)

Model: M Series


Technical Data:

Application for chemical and petrol chemical process, boilers and other industries.
Connection : From 1/2" to 3" flange type, JIS, ANSI, DIN rating available, special size on request
Pressure limited : 10 kg/cm² for plastic material type (P.V.C, P.P, PVDF)
    20 kg/cm² for standard type
    up to 40 kg/cm² on request
Temperature limited : 0~50°C for plastic chamber type
    -40~150°C for standard type
    -40~400°C for special type
Center to center length : Maximum 5500mm
Accuracy : ±4mm (Transmitter: ±12mm standard; ±6mm on request)
Indicating strips : Aluminum, Plastic (PBT) available, the colors are red and white
Specific gravity : 500~2900 kg/m³
Indicating gauge orientation adjustable
Chamber size : Ø50 or Ø60



------------------------------------------------------------------------------------------------------------------------------------
