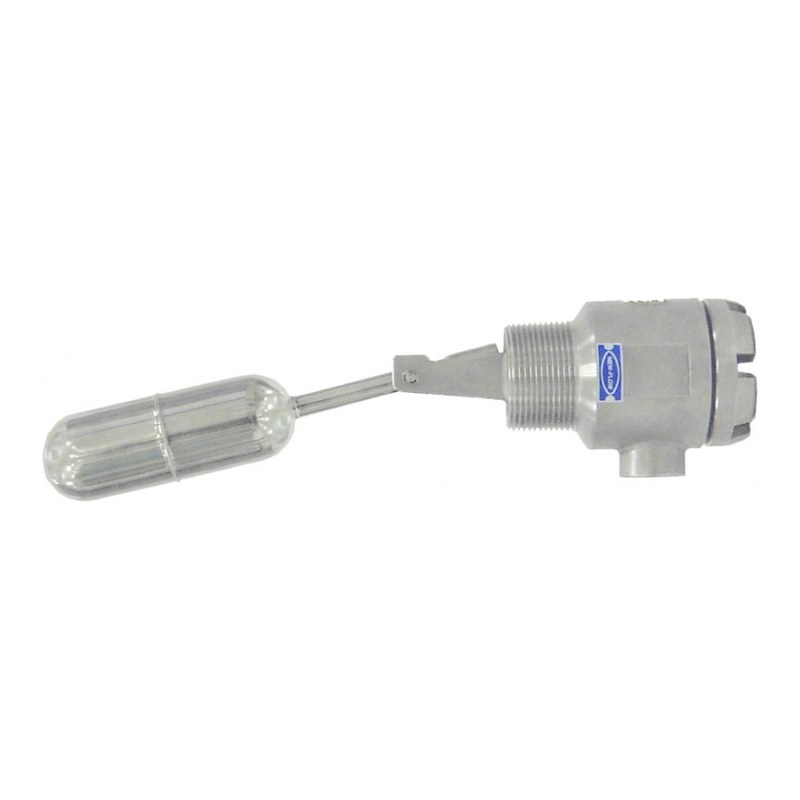

Horizontal Magnetic Level Switch
----------------------------
Manufacturer: NEW-FLOW(Taiwan)

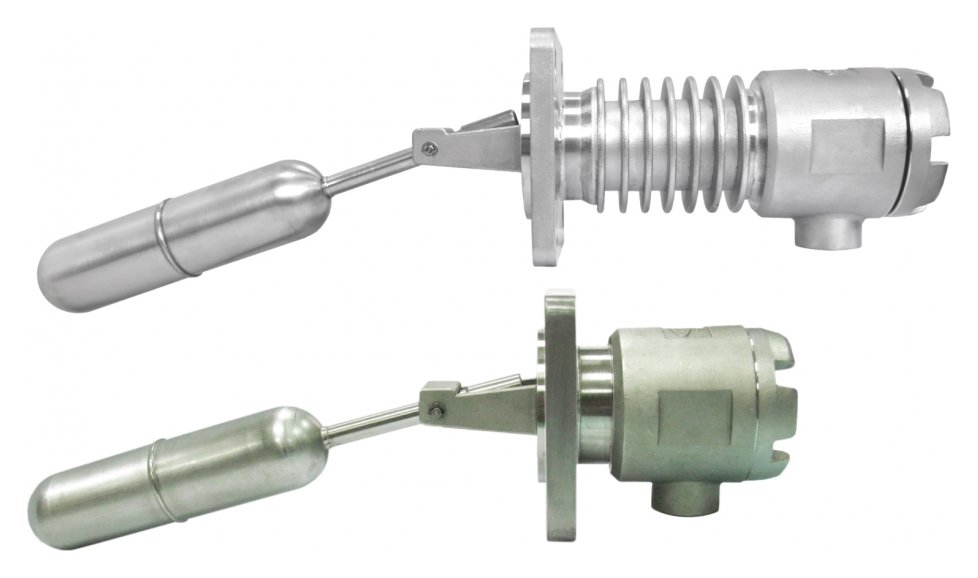

Model: LT202 Series
Technical Data:
| Enclosure housing |
: |
Weather proof IP65 |
| Material |
: |
Wetted parts SS316 or SS304 |
| Temperature limits |
: |
-30°C to 150°C |
| Pressure limits |
: |
3.0 MPa (30 kg/cm²), option: up to 4.5 MPa |
| Switch function |
: |
SPDT Micro switch |
| Switch rating |
: |
3A/250VAC, 3A/30VDC, 0.4A/125VDC |
| Conduit connection |
: |
1/2"NPT female, option |
| Float working specific gravity |
: |
>=0.7 (option: less than 0.7 available on request) |
------------------------------------------------------------------------------------------------------------------------------------
